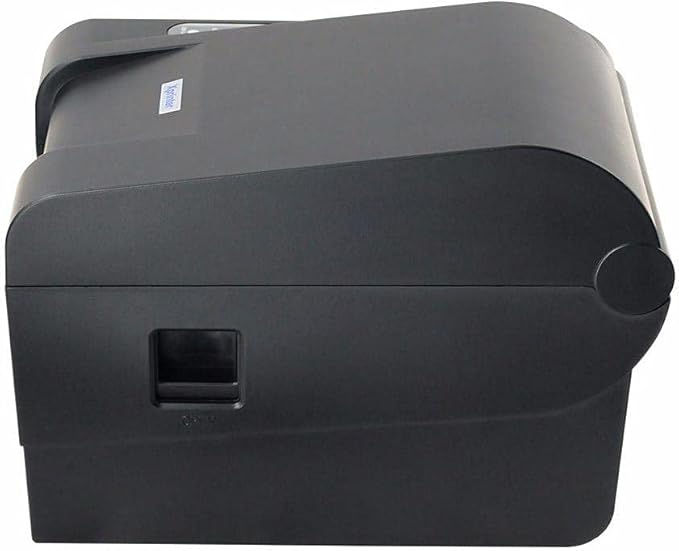

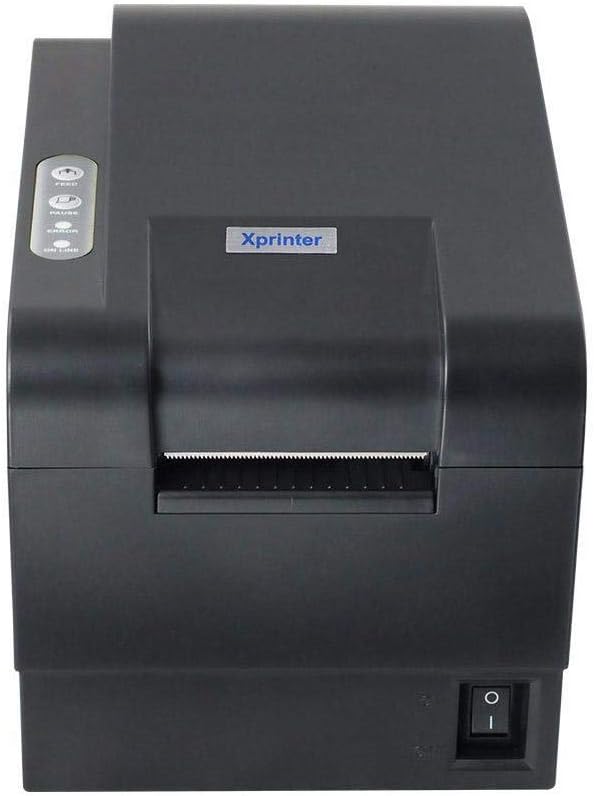

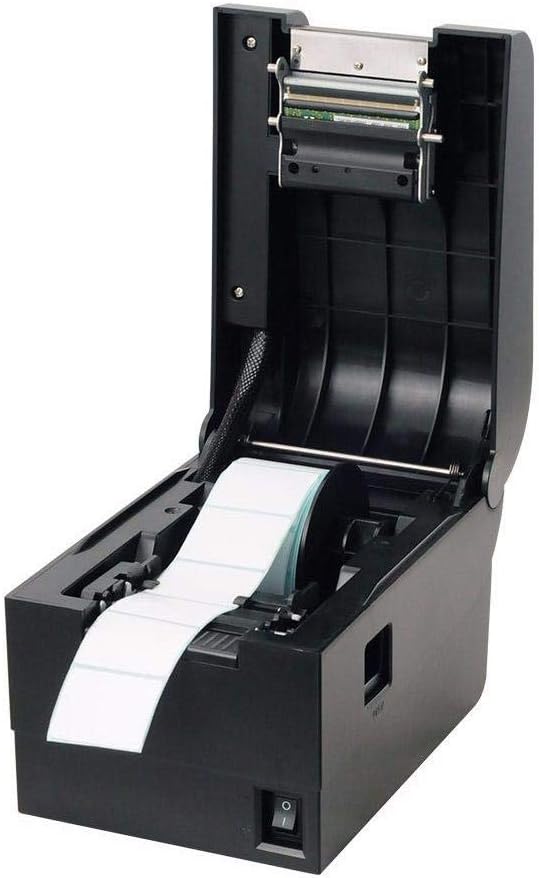

XPRINTER 235B

🎯 Primary Function & PurposePrinter Type: Thermal Barcode Label Printer ONLY.Intended Use: Designed exclusively for printing adhesive sticker labels, product barcode tags, price stickers, and item labels.Target Markets: Ideal for retail shops, pharmacies, clothing stores, supermarkets, and warehouse inventory management.📄 Printing SpecificationsPrint Method: Direct Thermal (Inkless / No ribbons or toner required).Resolution: 203 DPI (8 dots/mm) for crisp text and sharp barcode lines.Print Speed: Min: 50.8 mm/s | Max: 101 mm/s (Up to 152 mm/s depending on print density/firmware version).Max Print Width: 56 mm.Max Print Length: 1000 mm.Memory: 4MB DRAM (volatile memory) and 4MB FLASH (storage for fonts/templates).🔌 Interfaces & ConnectivityStandard Interface: USB Port (For direct connection to laptops, PCs, or desktop POS stations).Cash Drawer Port: RJ11 interface (DC 12V/1A).📜 Media & Sticker Roll SpecsMedia Type: Continuous, gap, black mark, fan-fold, and punched thermal sticker labels.Media Width Range: Supports roll widths from 20 mm to 60 mm.(Popular compliant sizes: 40x25mm, 50x30mm, 58x40mm).Sticker Roll Diameter: Max 100 mm outer diameter (to minimize frequency of roll changes).Smart Sensors:Photoelectric Gap Sensor: Automatically detects the space/gap between stickers for perfect vertical alignment.Auto Label Positioning: Automatically measures the size of the sticker to prevent label wasting.Print head temperature sensor and cover-open sensor.📊 Fonts, Graphics & BarcodesEmulation / Command Set: Uses standard TSPL commands (Dedicated label language).1D Barcodes: CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14.2D Barcodes: QR Code, PDF417, Data Matrix.Software Support: Fully compatible with Windows operating systems and natively supports BarTender (UltraLite edition) software for label design.⚡ Physical & Electrical CharacteristicsDimensions: 190 mm (D) × 135 mm (W) × 137 mm (H).Net Weight: Extremely lightweight at 1.04 kg.Power Adapter: Input: AC 100-240V | Output: DC 12V / 3A.Environmental Conditions: Operating temperature: 5～45℃, Humidity: 20～80% RH.
